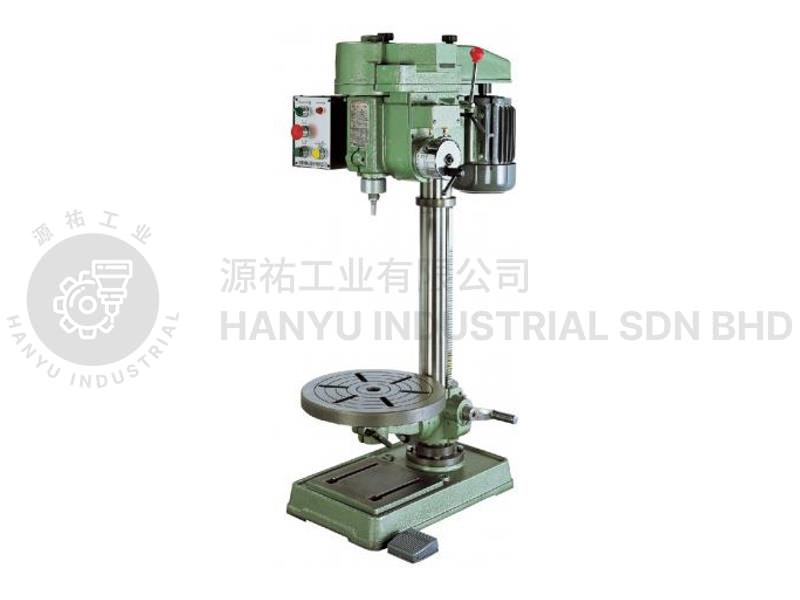

Tapping Machine Precision HDT-25

Tapping Machine Precision HDT-25

Tapping Machine Kuala Lumpur (KL)
Tapping Machine Selangor
Tapping Machine Malaysia

Product Description

Tapping Machine Precision HDT-25 is made with following good points:
  1. Yi Chang produced Horng Dar brand Bench Tapping Machines are all installed with self designed and produced Electronic Control Device for the best use of our machines. Unlike other outside electronic control device providers, we provide after sale service and maintenance.
  2. The motor is designed to stand high heat to increase the life of the machine.
  3. Quality made in Taiwan.
Video displays please see : https://goo.gl/uQZZOJ

Specification Table
Specifications / Model HDT-340 HDT-25 HDT-32
Stroke Manual Manual Manual
Spindle Type Inside Spindle MT2 MT3 MT3
For Chuck JT6 JT6 JT6
Working Ability
Steel (S45C)		 Drill Capacity 3-16 5-25 15-32
Tapping Capacity 3-13 5-20 15-32
Spindle Travel (mm) 100 140 140
Motor 1HP-4P 2HP-6P 2HP-6P
Spindle Speed
RPM (Steps)		 50HZ 250-960 (9) 160-1342 (9) 55-175 (4)
60HZ 300-1150 (9) 190-1610 (9) 65-210 (4)
Weight (kg) 101 204 221
  1. The practical working abilities are very related to sharpness on drill bit, good lubrication and suitable cooling.
  2. Customized spindle speed might be required for particular materials or drilling sizes.
