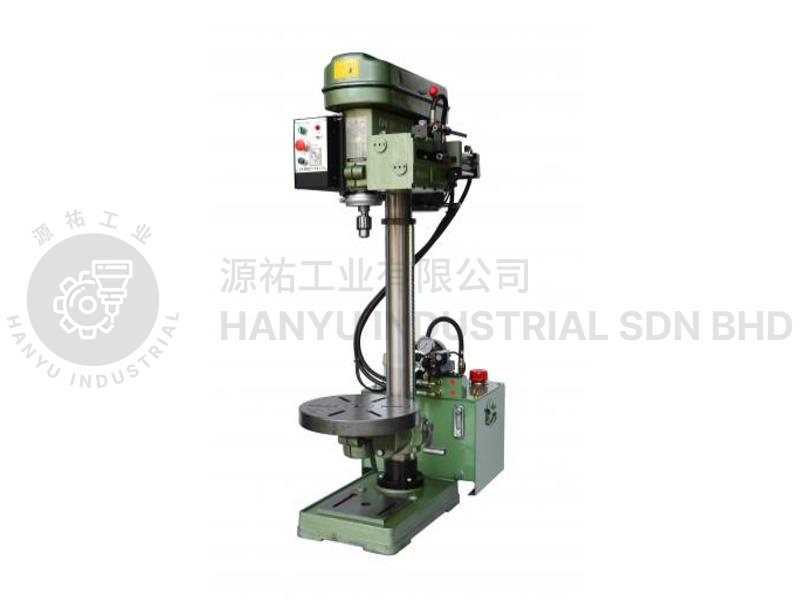

Drilling Machine Automatic (Clutch Type) HD-250

Drilling Machine Automatic (Clutch Type) HD-250

Drilling Machine Kuala Lumpur (KL)
Drilling Machine Selangor
Drilling Machine Malaysia

Product Description

Drilling Machine Automatic (Clutch Type) HD-250 is made with following good points:
  1. Yi Chang produced Horng Dar brand Bench Drilling Press Machine (clutch type) is with the unique clutch design for Preset Depth Model, which enable the spindle to stroke automatically and to reposition itself after use. This design improves the efficiency at the production line.
  2. In consideration of easier maintenance on the production line, the machine is designed and assembled by groups of parts, users do not need to take the whole machine from the line, but just a small group for fixing.
  3. Quality made in Taiwan.
Video displays please see :  https://goo.gl/uQZZOJ

Specification Table
Specifications / Model HD-120 HD-250 HD-350
Stroke Automatic Automatic Automatic
Spindle Type Inside Spindle MT2 MT3 MT4
For Chuck JT6 JT6
Working Ability Steel (S45C) 3-16 5-25 15-35
Spindle Travel (mm) 93 133 153
Motor 1HP-4P 2HP-6P 3HP-4*8P
Spindle Speed

RPM (Steps)		 50HZ 466-1675 (4) 200-1600 (9) 127-961 (8)
60HZ 560-2010 (4) 210-1700 (9) 150-1140 (8)
Weight (kg) 102 206 492
  1. The practical working abilities are very related to sharpness on drill bit, good lubrication and suitable cooling.
  2. Customized spindle speed might be required for particular materials or drilling sizes.
